Kubota Engine Overhaul Kits
Everything you need for an overhaul of your Kubota engine.
Don’t overhaul your engine with will-fit substitute parts. Kubota engine overhaul kits provide guaranteed quality with 100% Kubota genuine parts. You’ll have peace of mind that your overhaul delivers the reliable performance you’ve come to expect from your trusted Kubota engine.

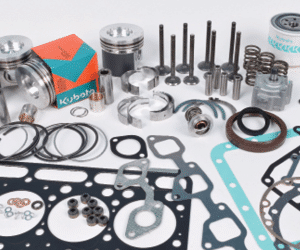

Kit includes:
• Piston kits
• Bearing kit
• Upper and lower gasket sets
• Valvetrain
• Oil pump
• Oil filter
• Thermostat
Overhaul kits offer savings over parts purchased separately.
Application Information
| Kit Part Number | Kit Description | Application | Serial Number |
|---|---|---|---|
| KEAOK-10005 | Std Metals, Std Pistons | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-11005 | OS Metals 0.20mm, Std Pistons | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-10205 | Std Metals, OS Pistons 0.5mm | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-11205 | OS Metals 0.20mm, OS Pistons 0.5mm | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-10006 | Std Metals, Std Pistons | V2003M-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11006 | OS Metals 0.20mm, Std Pistons | V2003M-E2B | 4A0001~ ~9PZ999 |
| KEAOK-10206 | Std Metals, OS Pistons 0.5mm | V2003M-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11206 | OS Metals 0.20mm, OS Pistons 0.5mm | V2003M-E2B | 4A0001~ ~9PZ999 |
| KEAOK-10007 | Std Metals, Std Pistons | V2003M-E3B | 9Q0001~ |
| KEAOK-11007 | OS Metals 0.20mm, Std Pistons | V2003M-E3B | 9Q0001~ |
| KEAOK-10207 | Std Metals, OS Pistons 0.25mm | V2003M-E3B | 9Q0001~ |
| KEAOK-11207 | OS Metals 0.20mm, OS Pistons 0.25mm | V2003M-E3B | 9Q0001~ |
| KEAOK-10008 | Std Metals, Std Pistons | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11008 | OS Metals 0.20mm, Std Pistons | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-10208 | Std Metals, OS Pistons 0.25mm | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11208 | OS Metals 0.20mm, OS Pistons 0.25mm | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-10009 | Std Metals, Std Pistons | V2003MT-E3B | 9U0001~ |
| KEAOK-11009 | OS Metals 0.20mm, Std Pistons | V2003MT-E3B | 9U0001~ |
| KEAOK-10209 | Std Metals, OS Pistons 0.25mm | V2003MT-E3B | 9U0001~ |
| KEAOK-11209 | OS Metals 0.20mm, OS Pistons 0.25mm | V2003MT-E3B | 9U0001~ |
| KEAOK-10005 | Std Metals, Std Pistons | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-11005 | OS Metals 0.20mm, Std Pistons | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-10205 | Std Metals, OS Pistons 0.5mm | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-11205 | OS Metals 0.20mm, OS Pistons 0.5mm | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-10006 | Std Metals, Std Pistons | V2003M-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11006 | OS Metals 0.20mm, Std Pistons | V2003M-E2B | 4A0001~ ~9PZ999 |
| KEAOK-10206 | Std Metals, OS Pistons 0.5mm | V2003M-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11206 | OS Metals 0.20mm, OS Pistons 0.5mm | V2003M-E2B | 4A0001~ ~9PZ999 |
| KEAOK-10007 | Std Metals, Std Pistons | V2003M-E3B | 9Q0001~ |
| KEAOK-11007 | OS Metals 0.20mm, Std Pistons | V2003M-E3B | 9Q0001~ |
| KEAOK-10207 | Std Metals, OS Pistons 0.25mm | V2003M-E3B | 9Q0001~ |
| KEAOK-11207 | OS Metals 0.20mm, OS Pistons 0.25mm | V2003M-E3B | 9Q0001~ |
| KEAOK-10008 | Std Metals, Std Pistons | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11008 | OS Metals 0.20mm, Std Pistons | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-10208 | Std Metals, OS Pistons 0.25mm | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11208 | OS Metals 0.20mm, OS Pistons 0.25mm | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-10009 | Std Metals, Std Pistons | V2003MT-E3B | 9U0001~ |
| KEAOK-11009 | OS Metals 0.20mm, Std Pistons | V2003MT-E3B | 9U0001~ |
| KEAOK-10209 | Std Metals, OS Pistons 0.25mm | V2003MT-E3B | 9U0001~ |
| KEAOK-11209 | OS Metals 0.20mm, OS Pistons 0.25mm | V2003MT-E3B | 9U0001~ |
| KEAOK-10010 | Std Metals, Std Pistons | V2203 Except BG | No Serial Number Break |
| KEAOK-11010 | OS Metals 0.20mm, Std Pistons | V2203 Except BG | No Serial Number Break |
| KEAOK-10210 | Std Metals, OS Pistons 0.5mm | V2203 Except BG | No Serial Number Break |
| KEAOK-11210 | OS Metals 0.20mm, OS Pistons 0.5mm | V2203 Except BG | No Serial Number Break |
| KEAOK-10011 | Std Metals, Std Pistons | V2203 DI | ~3Z1999 |
| KEAOK-11011 | OS Metals 0.20mm, Std Pistons | V2203 DI | ~3Z1999 |
| KEAOK-10211 | Std Metals, OS Pistons 0.5mm | V2203 DI | ~3Z1999 |
| KEAOK-11211 | OS Metals 0.20mm, OS Pistons 0.5mm | V2203 DI | ~3Z1999 |
| KEAOK-10012 | Std Metals, Std Pistons | V2203-E2B | 4A0001~ |
| KEAOK-11012 | OS Metals 0.20mm, Std Pistons | V2203-E2B | 4A0001~ |
| KEAOK-10212 | Std Metals, OS Pistons 0.5mm | V2203-E2B | 4A0001~ |
| KEAOK-11212 | OS Metals 0.20mm, OS Pistons 0.5mm | V2203-E2B | 4A0001~ |
| KEAOK-10013 | Std Metals, Std Pistons | V2203M-E2B | 4A0001~ |
| KEAOK-11013 | OS Metals 0.20mm, Std Pistons | V2203M-E2B | 4A0001~ |
| KEAOK-10213 | Std Metals, OS Pistons 0.25mm | V2203M-E2B | 4A0001~ |
| KEAOK-11213 | OS Metals 0.20mm, OS Pistons 0.25mm | V2203M-E2B | 4A0001~ |
| KEAOK-10014 | Std Metals, Std Pistons | V2203M-E3B | 4A0001~ |
| KEAOK-11014 | OS Metals 0.20mm, Std Pistons | V2203M-E3B | 4A0001~ |
| KEAOK-10214 | Std Metals, OS Pistons 0.25mm | V2203M-E3B | 4A0001~ |
| KEAOK-11214 | OS Metals 0.20mm, OS Pistons 0.25mm | V2203M-E3B | 4A0001~ |
